Case study · Beyond the tool
Machines, fixtures and prototypes
Mechanical design doesn't stop at the mold base. We also design packaging-line change parts, CNC fixtures and in-house 3D-printed prototypes, so you can prove a concept before cutting steel.
- Machines
- Star wheels · timing screws · special mechanisms
- Fixtures
- CNC work-holding
- Prototyping
- FDM 3D printing for fit & function
- Software
- AnyMetric industrial monitoring (Intersolar 2023)

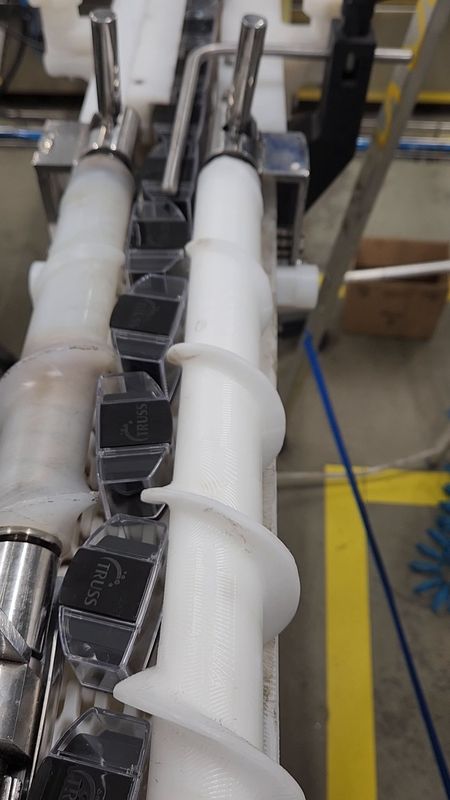

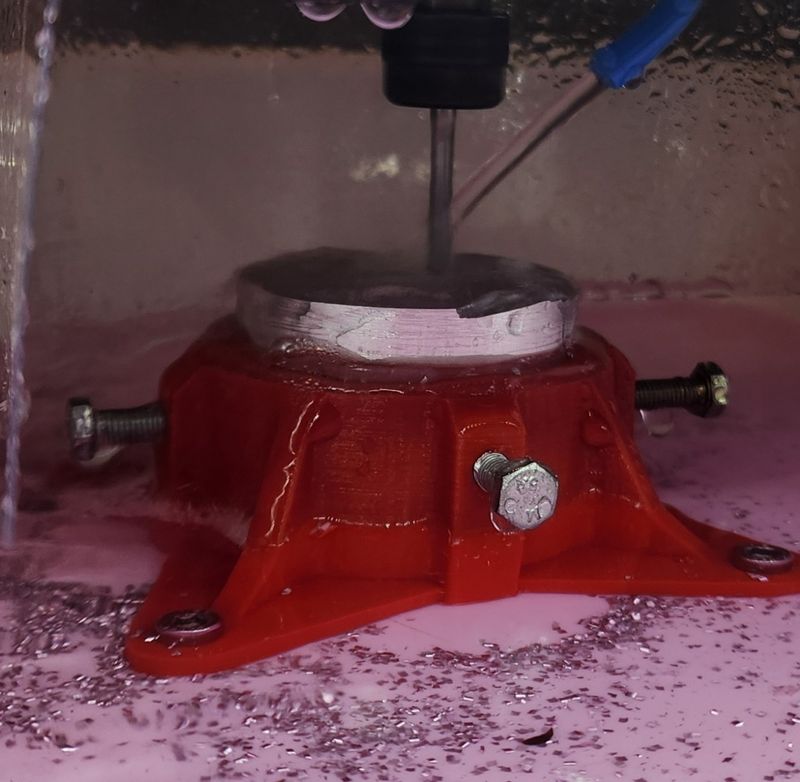

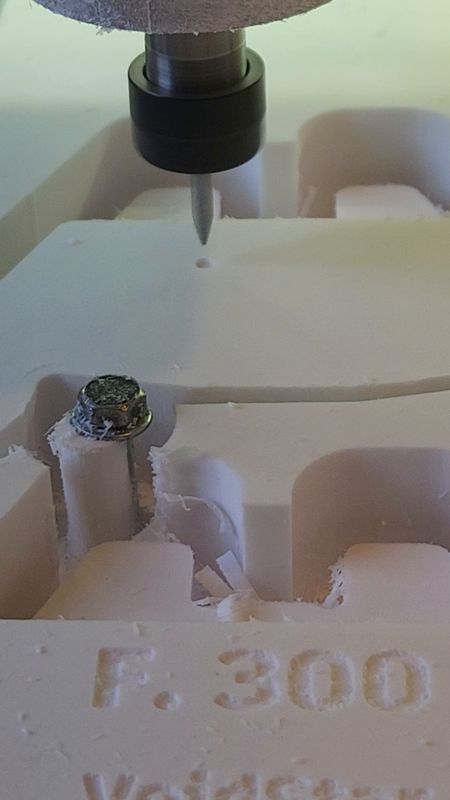

Change parts like star wheels and timing screws have to match the container and the machine exactly. We design them, along with work-holding fixtures for CNC machining.

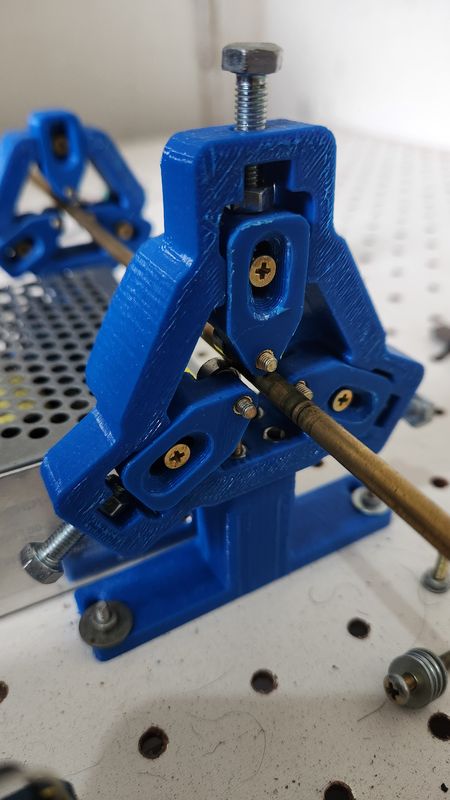

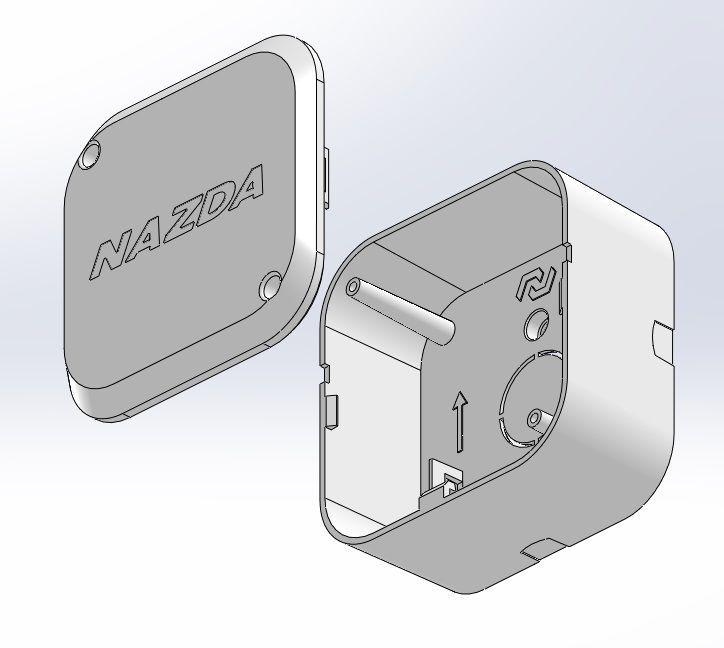

For new mechanisms and enclosures we print prototypes in-house first, so fit and function are proven before anyone commits to a tool.
Services used
-
01
Injection mold design
Simple 2-plate tools to hot runners, slides, lifters and multi-cavity molds.
