Service
Detailing, BOMs and engineering changes
Detail drawings, BOMs, electrode lists and engineering-change updates on your existing designs, billed by the hour.
- Price
- From $48/h
- Turnaround
- Quoted per job
What's included

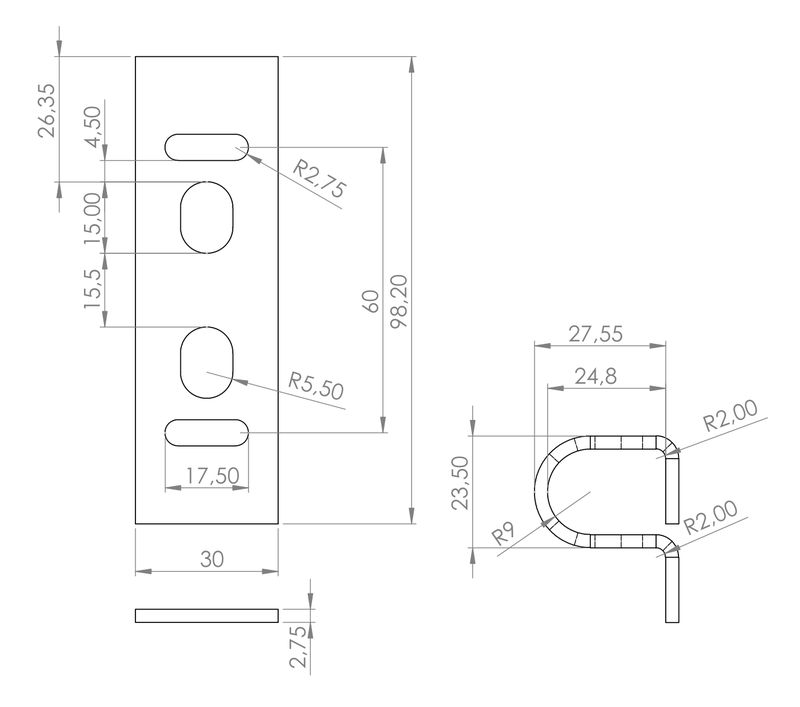

- 2D detail drawings from your 3D models
- Bills of materials
- Electrode lists
- Engineering-change (ECO) updates to existing tools
When shops use it
- Freeing your senior designer for the next tool
- Clearing a backlog of drawing updates
- Documenting older tools
Every package includes
Two review calls, native CAD plus neutral formats, and support when the tool first runs.
- Two design review calls: concept approval and final review
- Native CAD files plus STEP / Parasolid and PDF drawings
- Remote support at first tryout (T1)
- Free correction of design-caused issues until 30 days after T1
Related work
-
Sheet metal
Strip nesting, details and a load-tested datasheet
Pole-line hardware engineered from blank to datasheet: strip nesting for material yield, fully dimensioned details and load tests signed by a licensed engineer.
-
Stamping
Progressive die for a stainless band buckle
A buckle for the stainless-steel straps that hold fiber-optic cable hardware on utility poles. We designed the complete die. It was built, tried out and is running in production.
Other services: DFM review Injection mold design Progressive die design
First-time offer
Send us one part. Get a free DFM review in 48 hours.
Up to 8 hours of engineering, free of charge. No commitment — just see how we work.
