Case study · Stamping

Progressive die for a stainless band buckle

A buckle for the stainless-steel straps that hold fiber-optic cable hardware on utility poles. We designed the complete die. It was built, tried out and is running in production.

Client
Nazda — telecom & energy hardware
Material
Stainless-steel strip
Scope
Strip layout · 3D die assembly · 2D details · BOM
Result
In production. A lot of 10,000 parts is shown below.

The part is a small formed buckle that locks stainless-steel strapping. It has to be cheap at volume and consistent from the first hit to the last, because installers depend on it in the field.

We designed the strip progression, the 3D die assembly and the full set of 2D details and BOM. The tool was built from our drawings, tried out and put into production.

3D assembly of the progressive die
3D die assembly
The built progressive die on the bench
Built tool

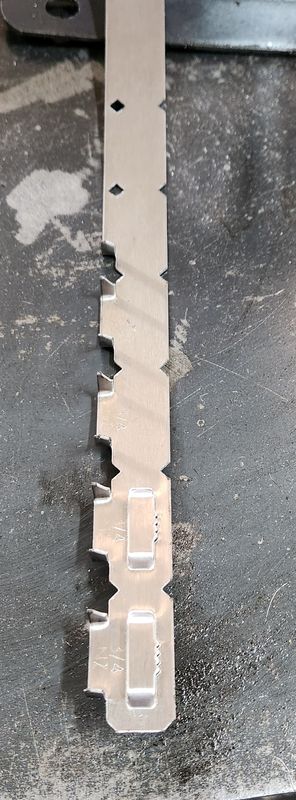

Stamped strip showing the progression of stations
Strip progression
Finished stainless-steel buckles in a hand
Finished parts

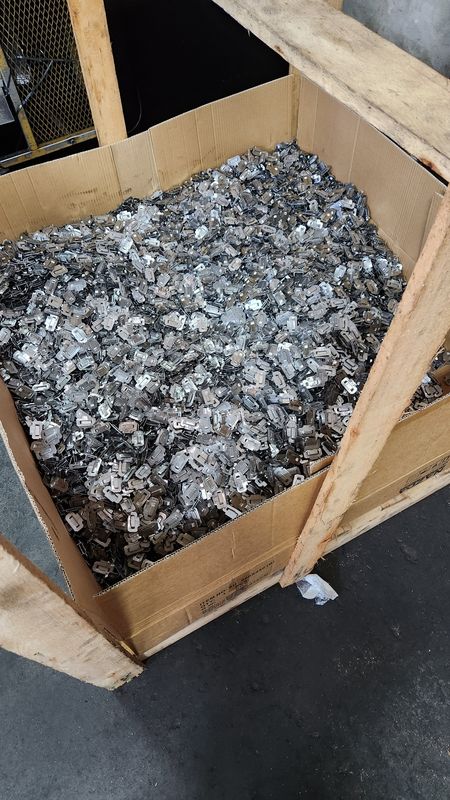

Crate holding a lot of 10,000 stamped buckles
10,000-piece lot

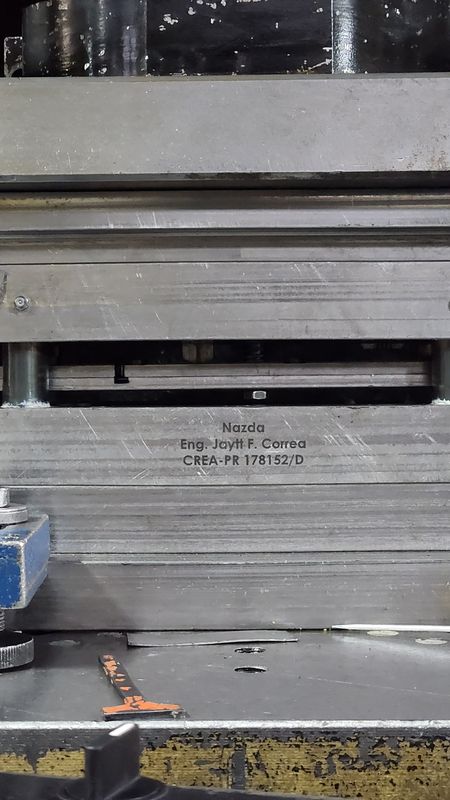

The die mounted in the press
In the press
